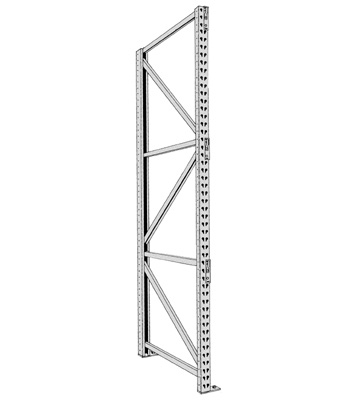

144" Pallet Racking Uprights

Available in either Regular Duty and Heavy Duty Configurations

144" Pallet Racking Uprights

Pallet Rack Uprights

All 144" Pallet Rack frames feature welded footplates,

2" on center beam adjustment,

size availability to 48" wide and 192" high.

Sahara or Blue-Gray are standard colors.

Frame size should be chosen to allow a minimum pallet overhang of 2" front and 2" rear.

The Pallet Rack load capacity per frame is 26,000 LB.

To preclude overturning,

the frame depth x 6 cannot exceed the height of the topmost loaded beam pair, unless all the frames are properly anchored or braced externally.
